Material Failures in Electrical Heat Tracing Systems: Causes and Solutions
Understanding the root causes of material failures in electrical heat tracing systems and exploring effective solutions
Abstract
Material failures in electrical heat tracing systems can lead to significant operational downtime and increased maintenance costs. This article explores the common causes of such failures, including design flaws, environmental factors, and improper installation practices. It also examines potential solutions, such as enhanced material selection, adherence to installation standards, and preventive maintenance strategies. By addressing these issues, the reliability and efficiency of heat tracing systems can be improved, reducing the risk of operational disruptions.
Introduction
Electrical heat tracing systems are essential in industrial applications, where they help maintain process temperatures, prevent freezing, and ensure safety. However, material failures can severely affect system performance, leading to costly downtime and safety risks. These failures often arise from a combination of design oversights, environmental challenges, and installation errors. For instance, inadequate thermal analysis during design may result in cable degradation, while exposure to corrosive environments can accelerate material wear.
By addressing these challenges with robust design simulations, selecting corrosion-resistant materials, and following stringent installation standards, the longevity and reliability of electrical heat tracing systems can be greatly improved. Furthermore, adopting a proactive approach that includes predictive maintenance and real-time monitoring ensures system efficiency and reduces the risk of unexpected failures.
Common Causes of Material Failures
1. Design Flaws
Insufficient understanding of the operational environment
Use of materials unsuitable for extreme temperatures or corrosive conditions
Lack of redundancy in critical system components, leading to single points of failure
Real-World Example:
In a petrochemical plant, the design team underestimated the operating temperature, causing the heating cables to degrade within months. The original cables, made of a standard thermoplastic material, couldn't withstand the high temperature, leading to premature failure. After conducting a proper thermal analysis, the team replaced the cables with materials rated for higher temperatures, such as silicone rubber, which extended the system's lifespan.
Solution:
Before finalizing designs, conduct thorough simulations using software (e.g., ANSYS or COMSOL) to model environmental and operational conditions. This ensures that materials are well-suited to the actual operating environment and temperature ranges.
2. Environmental Factors
Moisture exposure leading to insulation degradation
Corrosion caused by chemical exposure or saline environments
Temperature fluctuations causing material fatigue
Case Study:
A coastal refinery experienced frequent cable failures due to salt-laden air that corroded the heating cables. The original cables used were standard stainless steel, which proved ineffective in such a harsh, saline environment. Transitioning to marine-grade cables with advanced anti-corrosion coatings, such as nickel-plated alloys, reduced failure rates by 80%.
Explanation of 80% failure reduction:
The failure rate decreased by 80% because the new cables were designed with materials that were more resistant to corrosion, reducing degradation from the salt-laden air and preventing system failures.
Solution:
Choose materials designed for high-moisture or corrosive environments, such as marine-grade stainless steel sheathing or polymeric coatings like PTFE, which offer superior resistance to corrosion and environmental degradation.

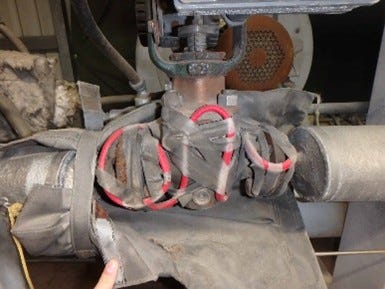

3. Improper Installation Practices
Incorrect cable routing causing mechanical stress
Failure to follow manufacturer guidelines during installation
Insufficient insulation leading to thermal inefficiencies
Mathematical Insight:
Improper heat transfer due to inadequate insulation can be quantified using Fourier's Law, which describes the rate of heat flow through a material:
q=−k⋅∇T
where:
q: Heat flux (rate of heat transfer per unit area, W/m²)
k: Thermal conductivity of the material (W/m·K)
∇T: Temperature gradient (the difference in temperature per unit distance, K/m)
In the context of heat tracing systems:
Inadequate insulation increases the temperature gradient ∇T\nabla T, causing more heat to be lost to the surrounding environment. This results in localized overheating where insulation is insufficient, which can damage cables and other components.
Solution:
To minimize thermal inefficiencies:
Use high-quality insulation materials with low thermal conductivity to prevent heat loss.
Route cables carefully to avoid mechanical stress and thermal hotspots.
Follow manufacturer installation guidelines for optimal insulation and heat retention properties.
Solutions to Address Material Failures
1. Improved Material Selection
· Opt for materials with high thermal and chemical resistance:
Select materials that can withstand extreme temperatures and resist chemical degradation. For example, high-temperature-resistant cables made from fluoropolymer (PTFE) or silicone rubber offer excellent thermal insulation and are highly resistant to chemical exposure, ideal for industries such as petrochemical or pharmaceutical plants.
· Use advanced insulation technologies to protect against moisture and corrosion:
Materials like mineral-insulated cables, silicone rubber, and PTFE-based coatings provide enhanced protection against moisture and corrosion, which can cause insulation breakdown. For example, Teflon-insulated cables in chemical plants prevent degradation from caustic substances.
2. Adherence to Installation Standards
Follow industry guidelines such as IEEE 515 or IEC 60079:
Industry standards ensure that systems are designed and installed correctly, reducing the risk of failure. Adherence to IEEE 515 (for electric heat tracing) and IEC 60079 (for electrical equipment in explosive atmospheres) ensures that heat tracing systems are safe and reliable.
Example:
When installing heat tracing cables in hazardous areas, adherence to IEC 60079 prevents ignition risks due to heat or electrical faults, ensuring safe operation.
Conduct thorough inspections during and after installation:
Regular inspections help detect issues like improper cable routing or insufficient insulation that could lead to future failures. Inspections should include physical checks and electrical resistance testing to ensure proper grounding and functionality.
3. Preventive Maintenance Strategies
· Regular system audits to identify potential issues early:
Routine audits are essential for spotting early signs of wear, such as cable degradation or insulation breakdown. For example, quarterly audits in a manufacturing plant identified minor insulation wear due to prolonged exposure to high temperatures, allowing for timely repairs and preventing system failure.
· Use predictive maintenance tools to monitor system health in real-time:
Sensors and IoT devices can monitor system parameters like temperature and voltage, detecting anomalies before they cause failure. Integrating this data with cloud-based platforms enables operators to take corrective actions promptly.
Example:
A chemical processing plant used infrared thermography to monitor heat tracing cables, identifying hotspots that indicated insufficient insulation. This allowed for timely repairs and prevented a catastrophic failure

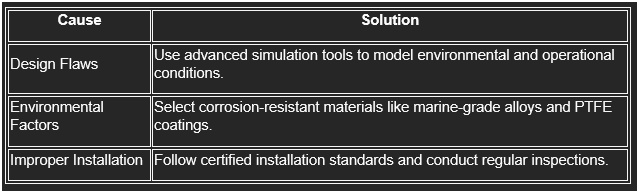

Table: Common Causes of Failures and Recommended Solutions
Conclusion
Material failures in electrical heat tracing systems can be mitigated through thoughtful design, careful installation, and ongoing maintenance. By addressing design flaws, environmental challenges, and installation errors, industries can improve the safety, efficiency, and longevity of their heat tracing systems. Future advancements in materials and monitoring technologies promise to further reduce failure rates, enhancing system reliability and performance.
